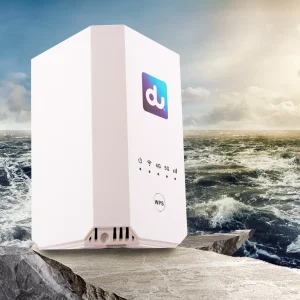

مودم سیم کارتی 5G مدل Zltx28 pro

ZLT X28 یک راه حل محصول چند سرویس داخلی 5G بسیار پیشرفته است که به طور خاص برای برآورده کردن داده های یکپارچه طراحی شده است و نیازهای دسترسی Wi-Fi دو باند 802.11b/g/n/ac/ax برای کاربران مسکونی، تجاری و شرکتی را دارد. این محصول از شبکه پیشرفته گیگابیتی و قابلیت های Wi-Fi AP دو باند پشتیبانی می کند. این پوشش خدمات گسترده ای را فعال می کند و توان عملیاتی داده و ویژگی های شبکه را برای مشتریانی که به دسترسی آسان پهنای باند و اتصال Wi-Fi در نقطه داغ نیاز دارند، ارائه می دهد.

مشخصات اصلی محصول:

ZLT X28 Specification

Hardware Specifications
Spec	Description
Chipset	MediaTek: T750
Chipset	WiFi: MT7915+MT7975
Standard	NR SA: 2.5Gbps (UL), 4.6Gbps (DL)
Standard	LTE: DL CAT19, UL CAT18
Memory	ROM: 8Gb
Memory	RAM: 8Gb

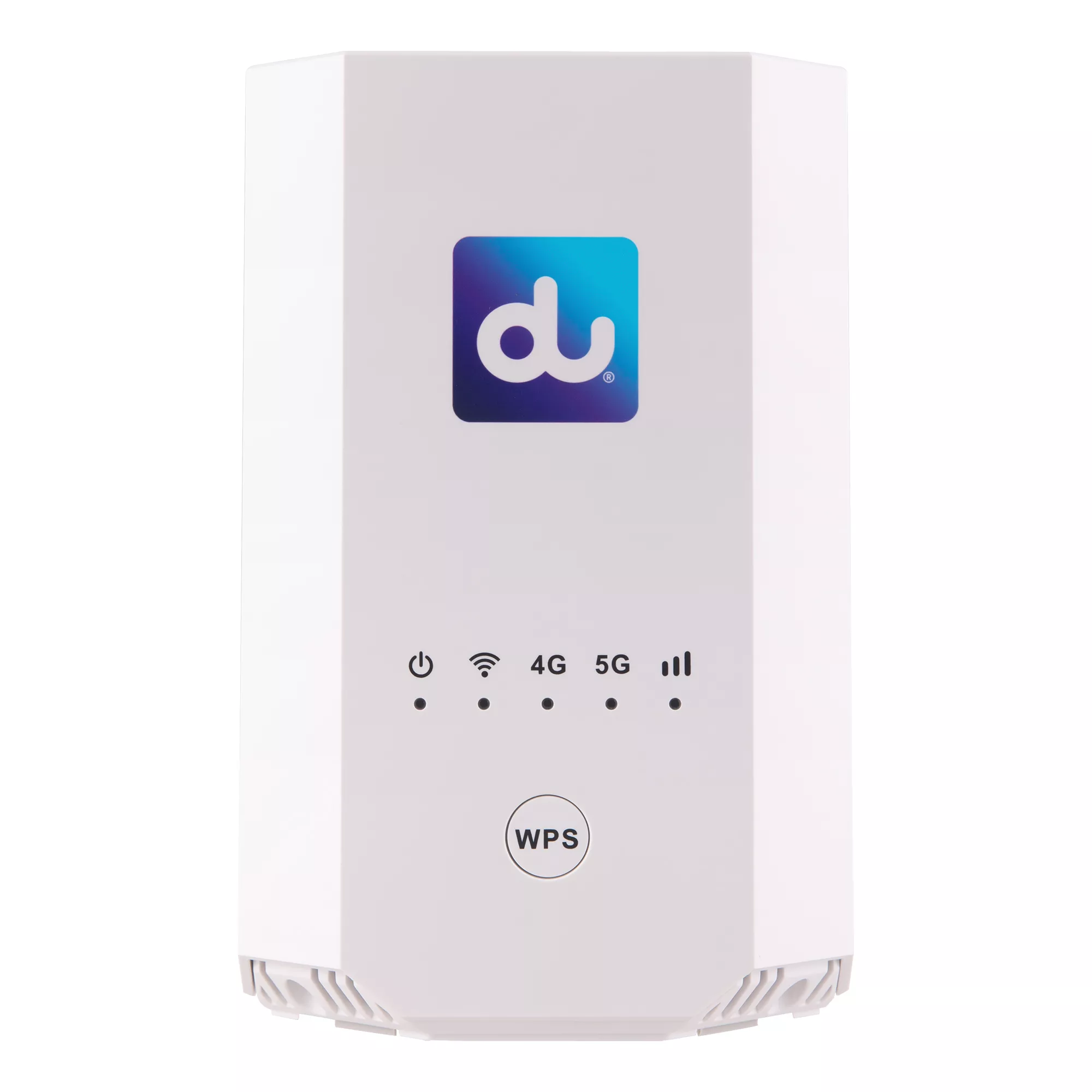

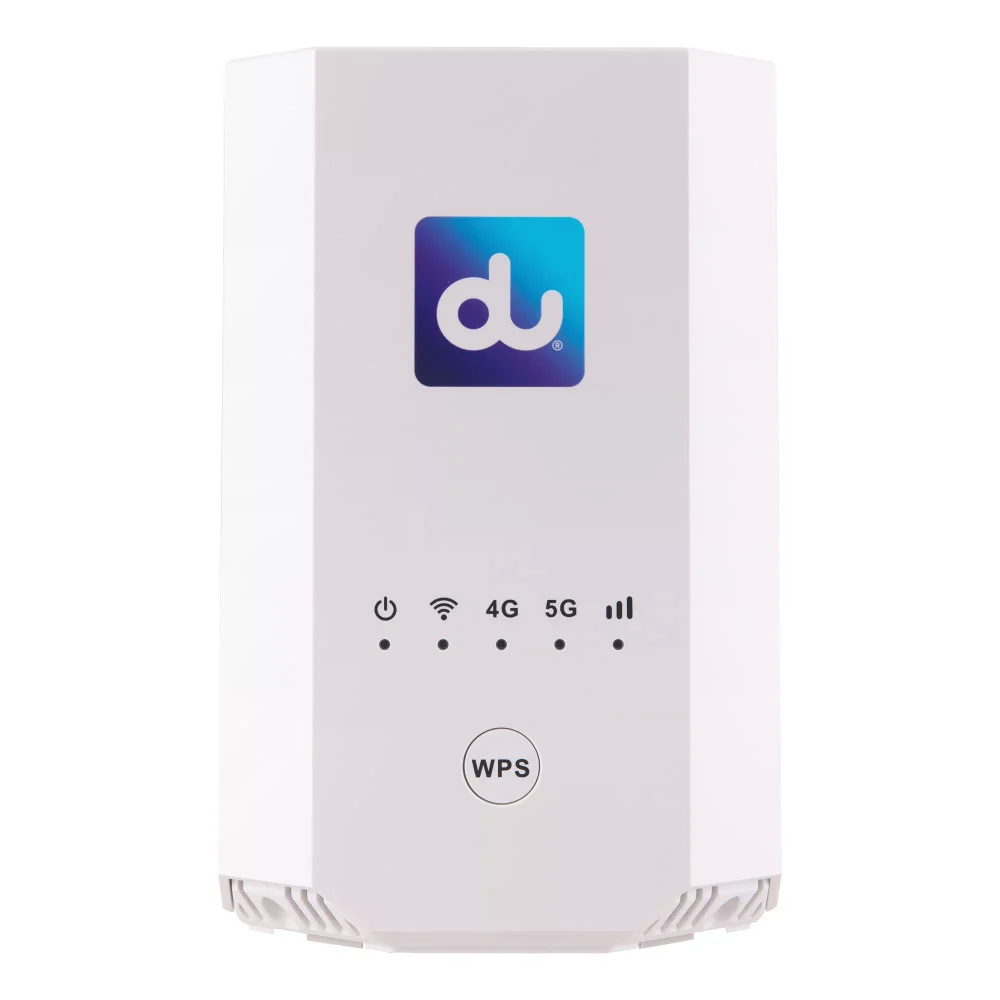

LED	Power
	Wi-Fi Switch Status
	4G Signal Indicator
	5G Signal Indicator
	Signal Quality Indicator

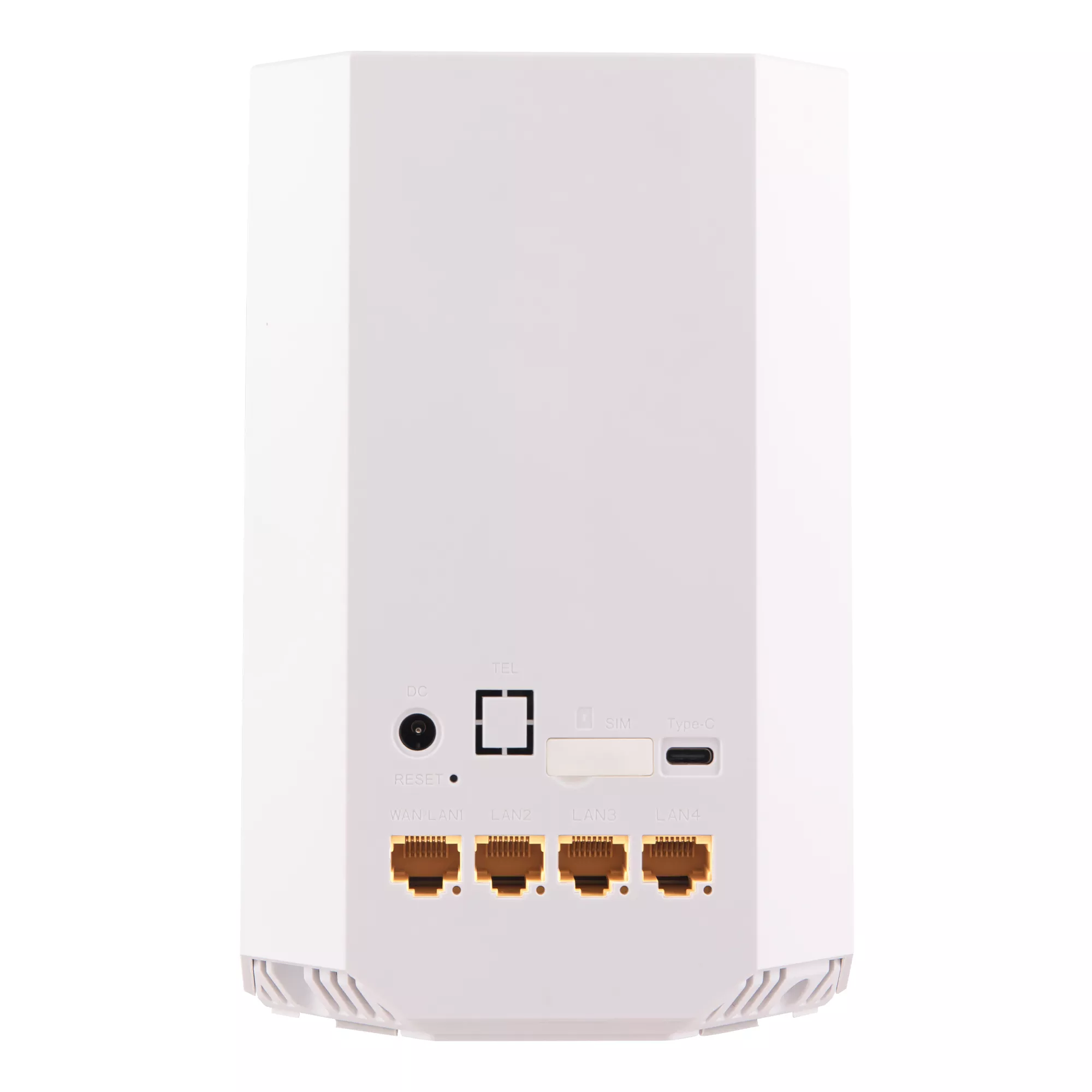

Interfaces	12.5Gbps W/LAN Port + 3GE LAN Port
	RJ11 Port * 1
	SIM Slot * 1 (3FF)
	ESIM*1(Built-in)
	DC Socket
	TYPE_C USB3.0 for Manufacture
SIM	1.SIM(4FF) Support 1.8V& 3.0V
SIM	2.ESIM
Dimensions	120mm120mm188mm
Weight	Approximately 500g

Network/RF Specifications
Feature	Capability
3GPP Standard	Release 15
NR Modulation	DL 256QAM, UL 256QAM
NS SCS	30khz, 15khz
Support Bands	5G NR: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
	4G FDD: B1/B3/B5/B7/B8/B20/B28/B32
	4G TDD:B38/B40/B41/B42/B43
ENDC/CA	CA Feature
5G MIMO	DL 4 × 4 MIMOUL 2 × 2 MIMO
5G RX/TX	NSA: 1T4RSA: 2T4R
5G Antenna	8 Built-in omnidirectional antennas
5G Antenna Gain	1~5 dBi
5G Output power@25℃	TDD NR:26±2dBm(n41/n77/n78)；
5G Output power@25℃	FDD NR/LTE BAND :23±2dBm
5G Peak Throughput	5G NR: 2.5Gbps (UL), 4.6Gbps (DL)
LTE Category	DL CAT19, UL CAT18
LTE Modulation	DL 256QAM, UL 256QAM
LTE MIMO	LTE DL 4 × 4 MIMO：B1/B3/B7/B38/B40/B41/B42/B43
TDD/FDD LTE Peak Throughput	DL: 1.6GbpsUL: 200Mbps
Voice (In Roadmap)	VONR/VOLTE/CSFB
Output Power@25℃	23±2 dBm
Antenna Gain	1-5 dBi

WiFi Capability
Feature	Capability
Wi-Fi Frequency	2.4GHz/5GHz
Wi-Fi MIMO	MIMO 2*2(5G)
Wi-Fi MIMO	MIMO 2*2(2.4G)
Wi-Fi Antenna	2 Built-in 2.4G Wi-Fi antennas
Wi-Fi Antenna	2 Built-in 5G Wi-Fi antennas
Wi-Fi Output Power	16dBm/2.4G; 17 dBm/5G;
Wi-Fi Channel BW	20MHz,40MHz,80MHz(ac/ax)
Wi-Fi Channel	2.4G Wi-Fi Channels: 1-13
	5G Wi-Fi Channels:
	36 40 44 48 52 56 60 64 100 104 108 112 116 120 124 128 132 136 140 149 153 157 161 165
Wi-Fi Antenna Gain	5dBi

Environment Specifications
Feature	Capability
Operating Temperature	0°℃~45°℃
Storge Temperature	-20°℃~70°℃
Operating humidity	5% ~ 95%
Storage humidity	5% ~ 95%

Software Specifications
Spec	Description
Language	English
Language	Could be customized
Https/Http	Both
User Login	Support two users (admin user and normal user) and different limitation and display
Network Status	Signal strength
	Network type(5G/4G/3G.)
	SIM card status
System Status	Mobile parameters,
	APN/DHCP Memory details,
	Version/Device information
Internet Settings	Network mode setup,
	Data switch,
	Roaming setup
APN Setup	APN name,
	Nat Switch on APN bear,
	PDP (IPV4/IPV6/IPV4V6),
	MTU size
SIM Card	PIN Management
SIM Card	SIM card Authentication
DHCP Setup	Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time
Static Route	Route Setup on WAN/LAN
Static Route	interface
DDNS	Support
PCI Lock	Support
Carrier SIM Lock	Support
VPN	L2TP, PPTP, GRE, IPSEC
Backup/Restore	Encryption backup current settings and restore the backup settings
Work Mode	NAT/ Router mode
Voice	VoNR/VoLTE /VOIP

Device Management
Spec	Description
Software Update	Web GUI update
Software Update	TR069 update
TR069	HTTP/HTTPS,
	Supports upload/download the ACS specified file,
	Support configure & queries parameters
	Support remote upgrade
	Support cycle monitor
Diagnostics	Ping/Trace/Tcpdump
Diagnostics	Export diagnosis results and operation logs

Firewall Features	Functions, DMZ, Port Mapping, Port Filter, IP-Port Filter, MAC Filter, URL Filter, IP MAC Binding, ACL Firewall, Speed Limit, UPnP
